MB Quart QA1-900.6D Q-Series 900 Watt 6-Channel DSP Amplifier
Couldn't load pickup availability
Authorized Canadian MB Quart Retailer
Authorized Canadian MB Quart Retailer
We are proud to be an authorized MB Quart retailer offering products backed by their original Canadian warranty and comprehensive after-sales support. When you purchase from us, you can shop with confidence knowing your investment is protected by official manufacturer guarantees and our dedicated customer service team.
Delivery and Shipping
Delivery and Shipping
Free Shipping to the Provinces over $100
We offer Free Ground Shipping to all provinces in Canada on orders over $100. Paid shipping is available for orders below $100. Paid Express Shipping is also available for those customers who need it quick.
Oversized Orders
Select oversized products will ship via LTL Courier. This is a network of independent couriers across Canada.
Shipping Timelines
All products ship from our Markham, Ontario warehouse. Orders ship Monday to Friday and orders placed before 2pm ET usually ship the same day. Customers can expect approximately 1-3 business days for products to reach Manitoba, Ontario or Quebec. Alberta, British Columbia, New Brunswick or Newfoundland may experience approximately 5 to 7 business days for arrival.
The Territories
We offer paid shipping on smaller items to Nunavut, Northwest Territories and the Yukon.
Proudly Canadian
Proudly Canadian
When you shop with BuyIt, you're supporting a proudly Canadian business with over three decades of service excellence. Our Markham, Ontario distribution centre not only ensures fast delivery across the country, but represents our commitment to providing Canadian customers with quality technology backed by local support.
Description
Description

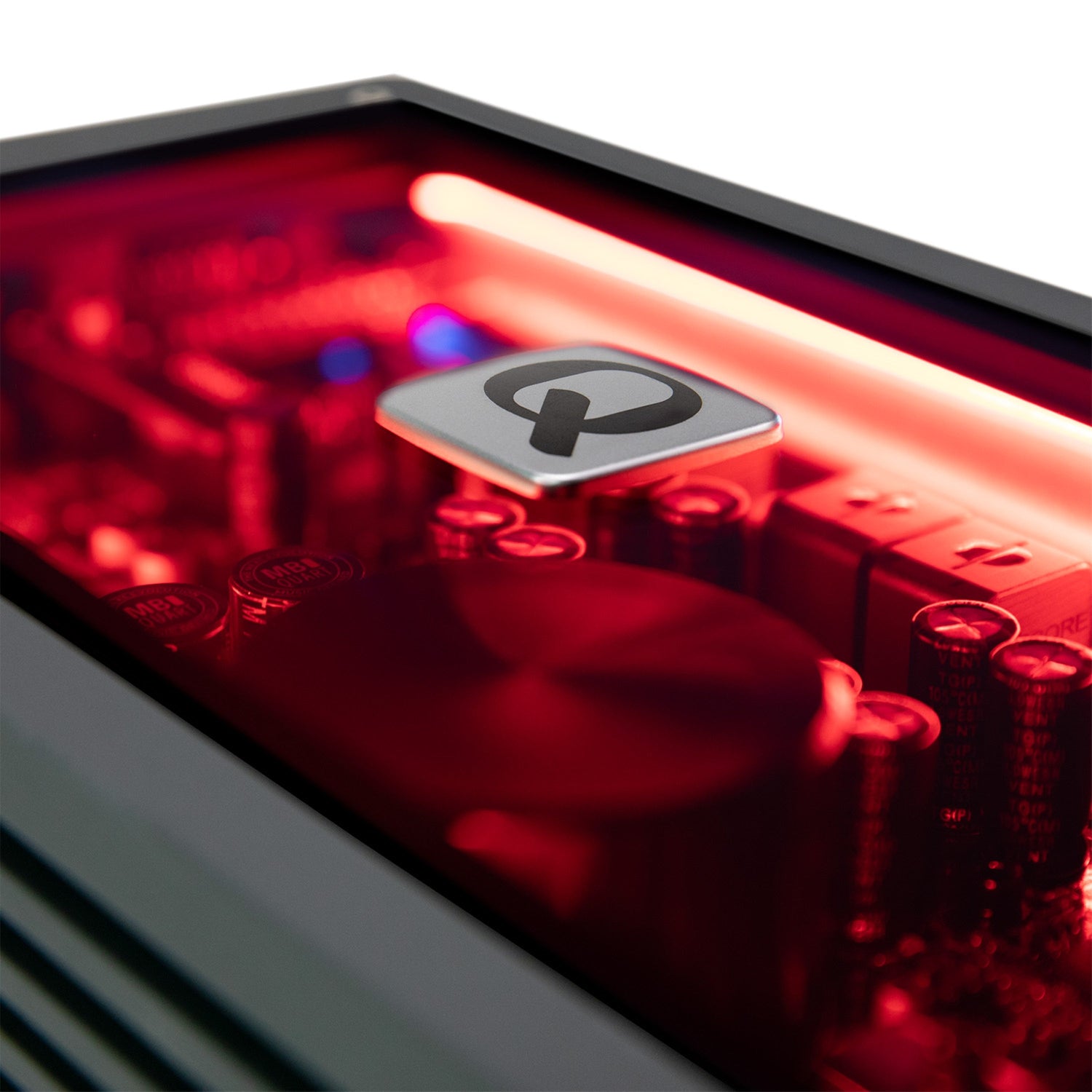

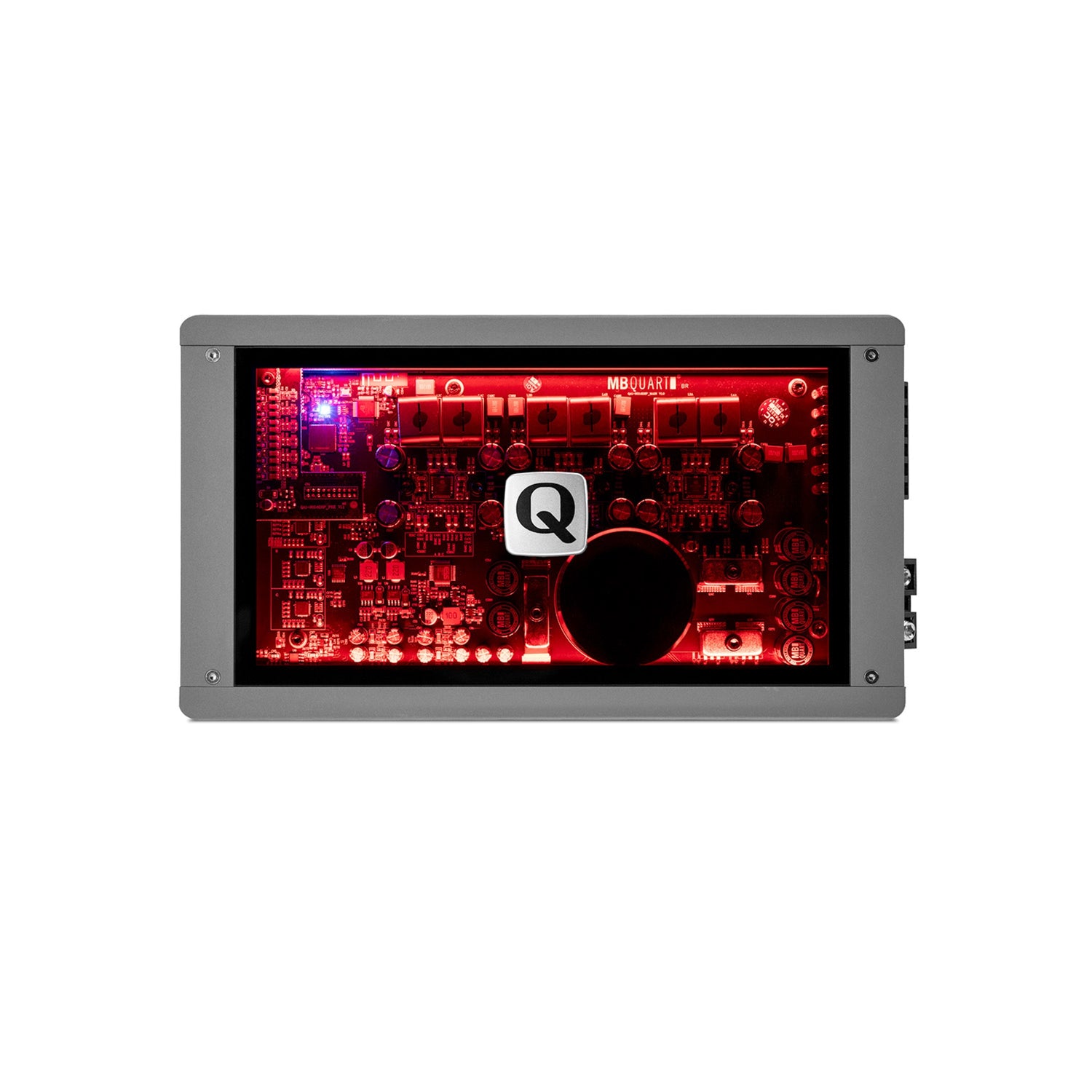

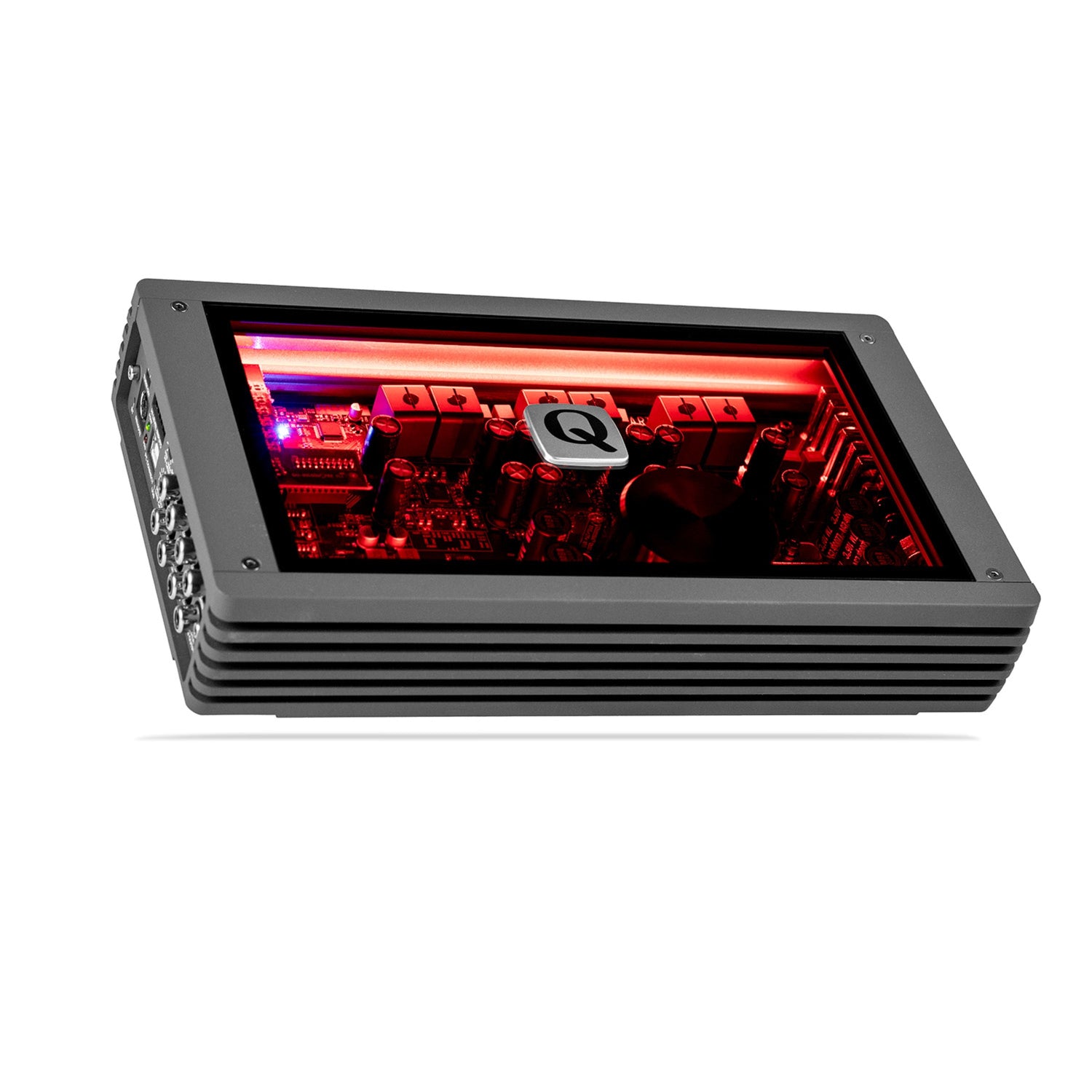

MB Quart QA1-900.6D Q-Series 900 watt six channel DSP amplifier that allows complete tuning control from your PC, iPhone, or Android device for a perfectly dialed-in sound experience. Features a through-glass top design with red LED accent lighting.
| Low Noise Preamplifier Circuit |
Q-Stasis Pre Amplifier Stage: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality. |
|---|---|

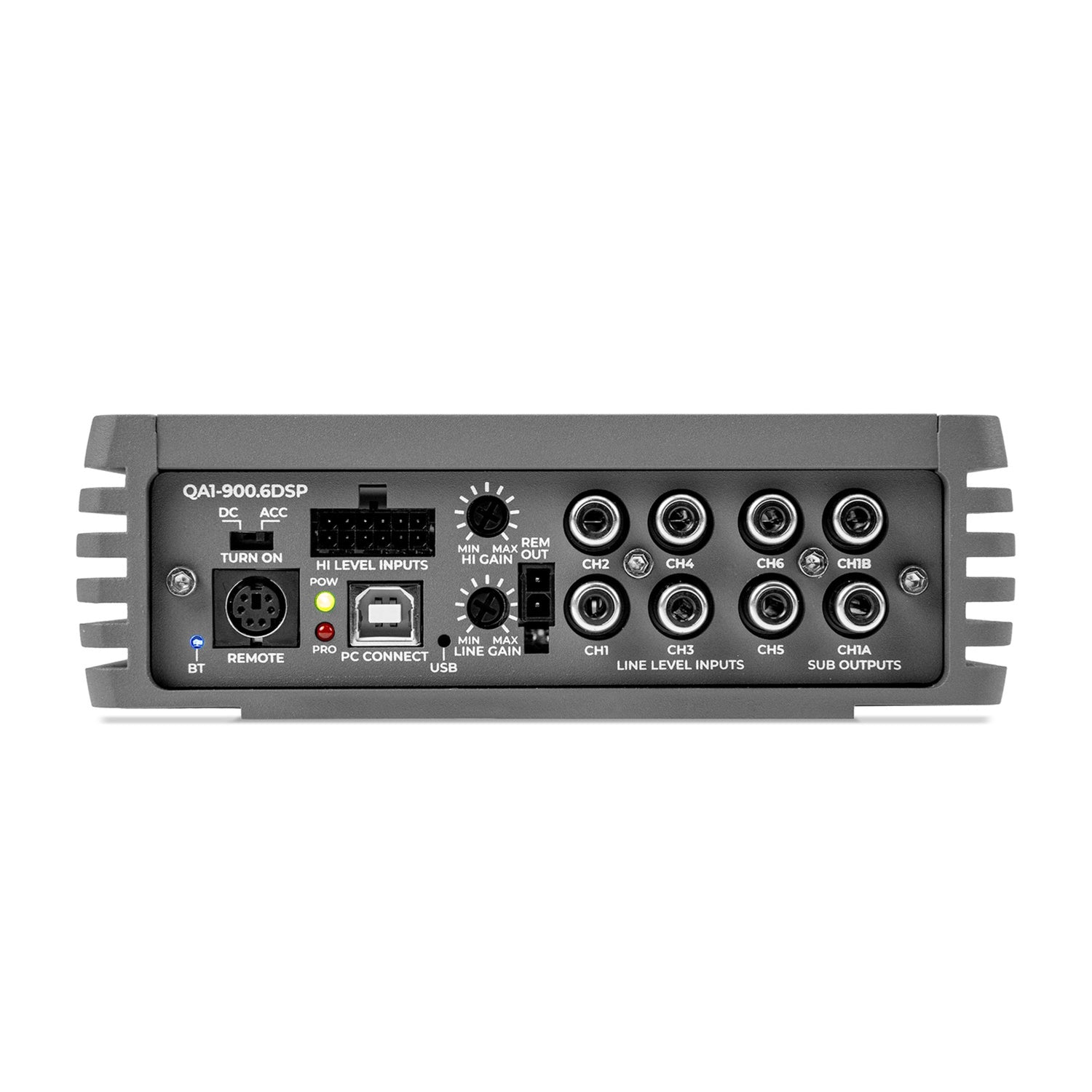

| RCA Inputs |
3 pair of nickel-plated RCAs that allow for secure connections and is corrosion resistant. |
| High Level Inputs |
Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power. |
| Operation Mode |
Six channel operation: Flexible installation allows this amplifier to run in six channel or bridged mono modes. |
| Crossover Type |
Complete control of amplifier signal via the DSP PC/iPhone/Android applications. |
| Electronic Equalizer |
DSP: Parametric (full variable customizing of Freq) / Graphic (31 bands can't change the Freq) |
| Class / Topology |
Full Range Class D: Highly efficient circuit topology which helps the amplifer provide high performance output. |
| Output Device Technology |
MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and provide high level of sound quality. |

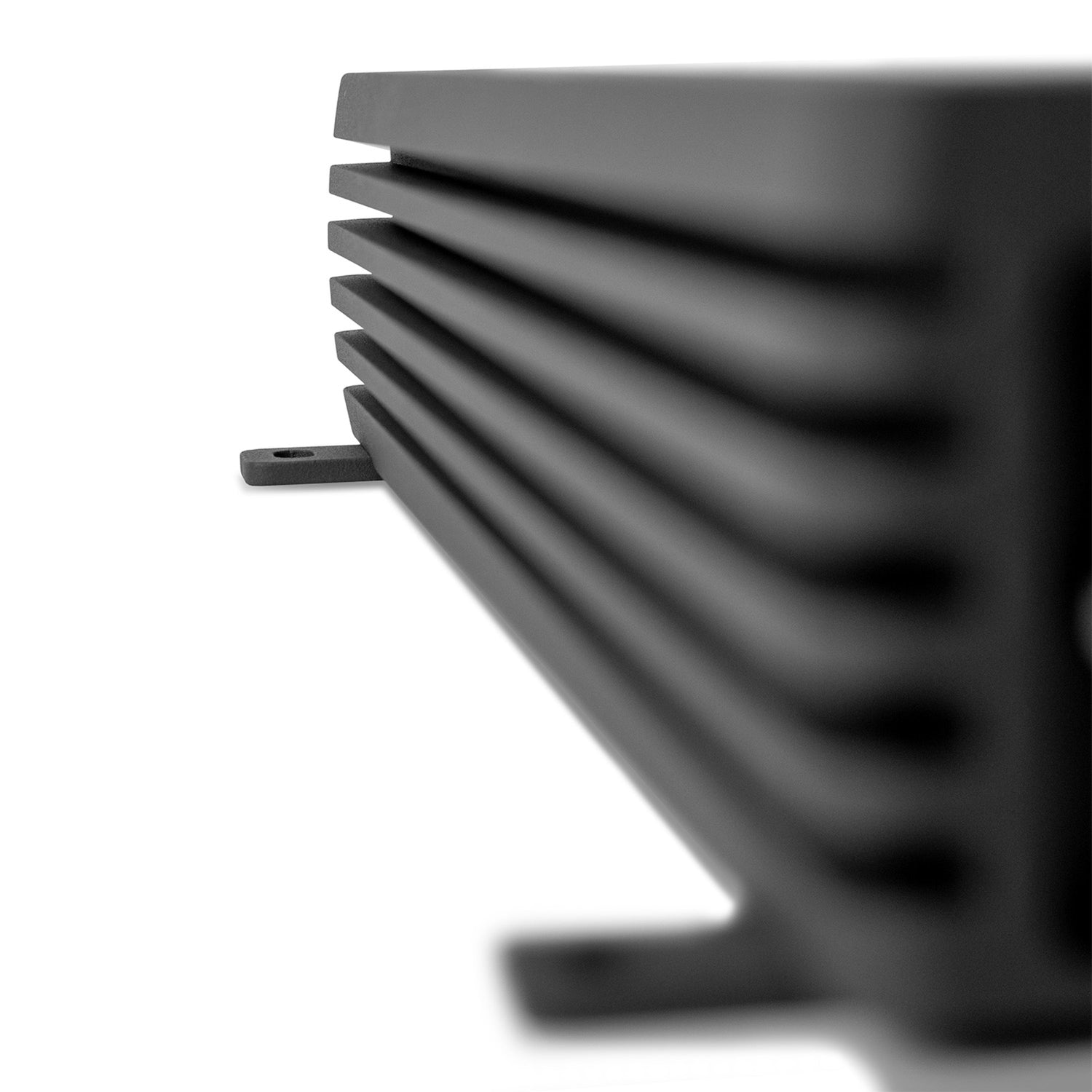

| Heat Sink |
Extruded aluminum heat sink that is machined to it final shape allows the amplifer to run lower impedance for longer duration. |
| Power Supply |
Q-series amplifiers use a MOSFET Pulse Width Modulation power supply that allows the amplifier to produce efficient power without taxing the electrical system. |

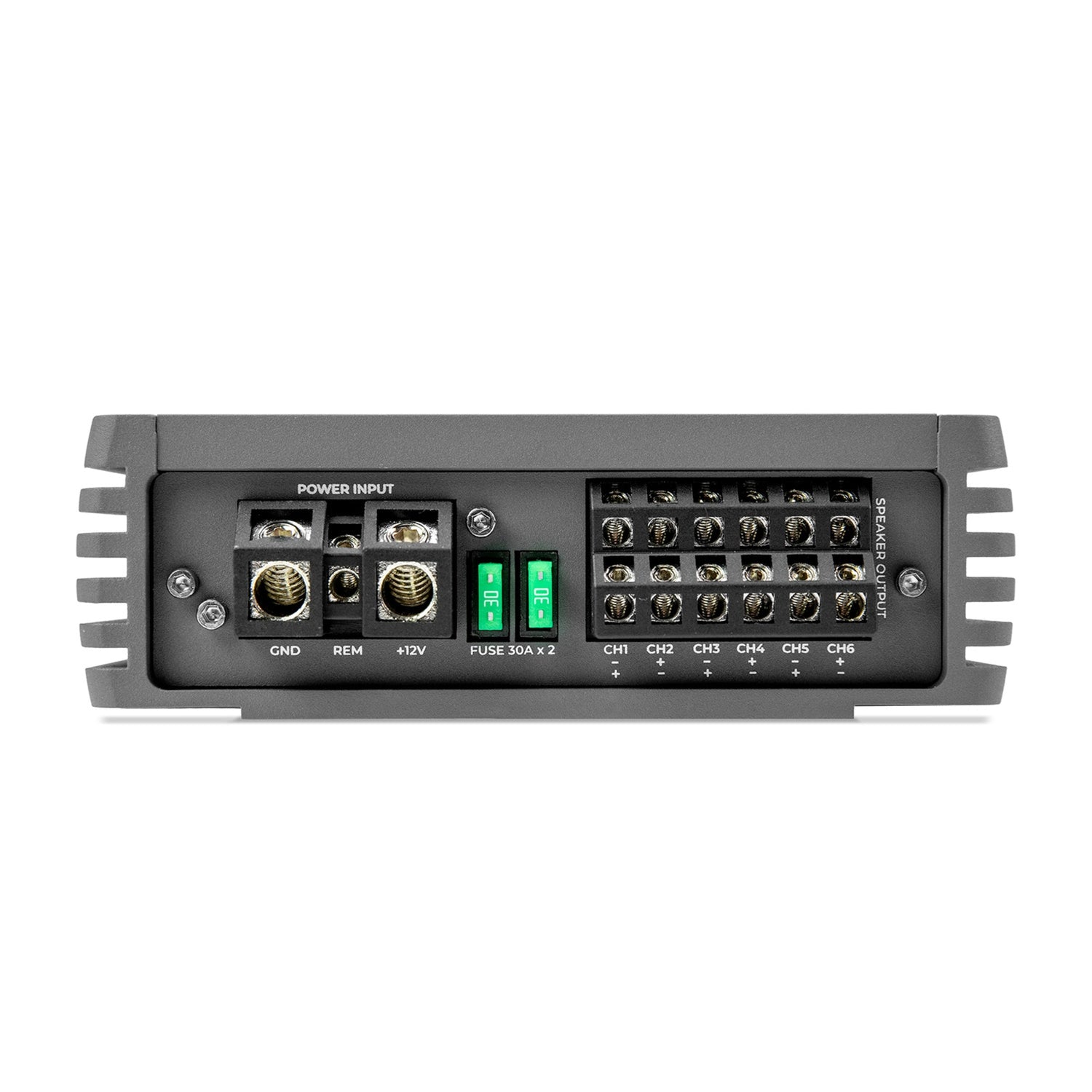

| Output Connections |
Heavy duty output terminals allows for secure connection so electrical signal can pass into wiring and resist corrosion. |
| Connection Type |
Nickel plated corrosion resistant connections. |
| Full-Range RCA Outputs for Signal Pass Through |
One pair of RCA connectors, Ch1a & Ch1b output allow distortion free signal to be passed through this amplifier to feed that signal to a mono-block amplifier without the need for noise generating Y cables. |
| LED System Protection Circuitry Diagnostics |
Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. |

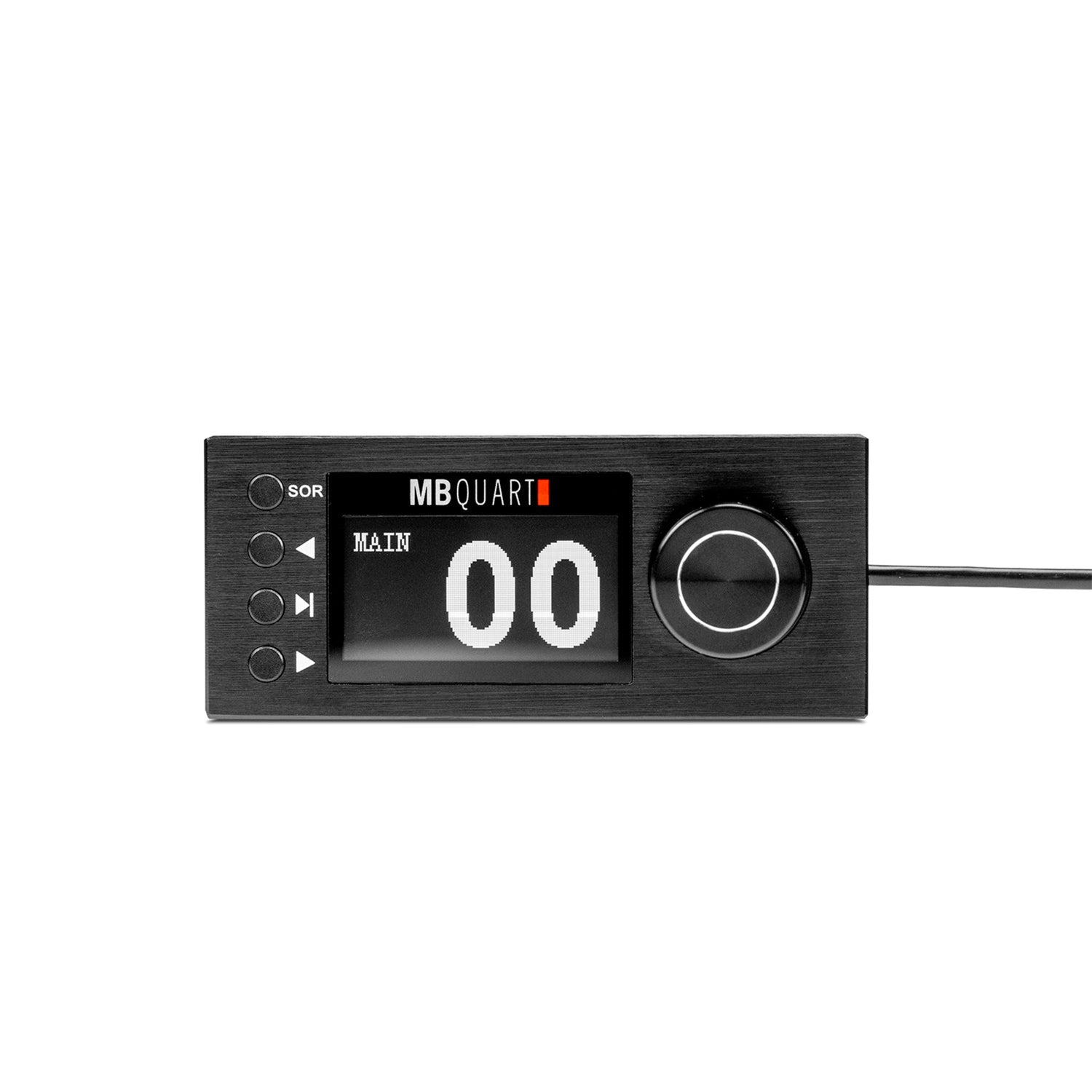

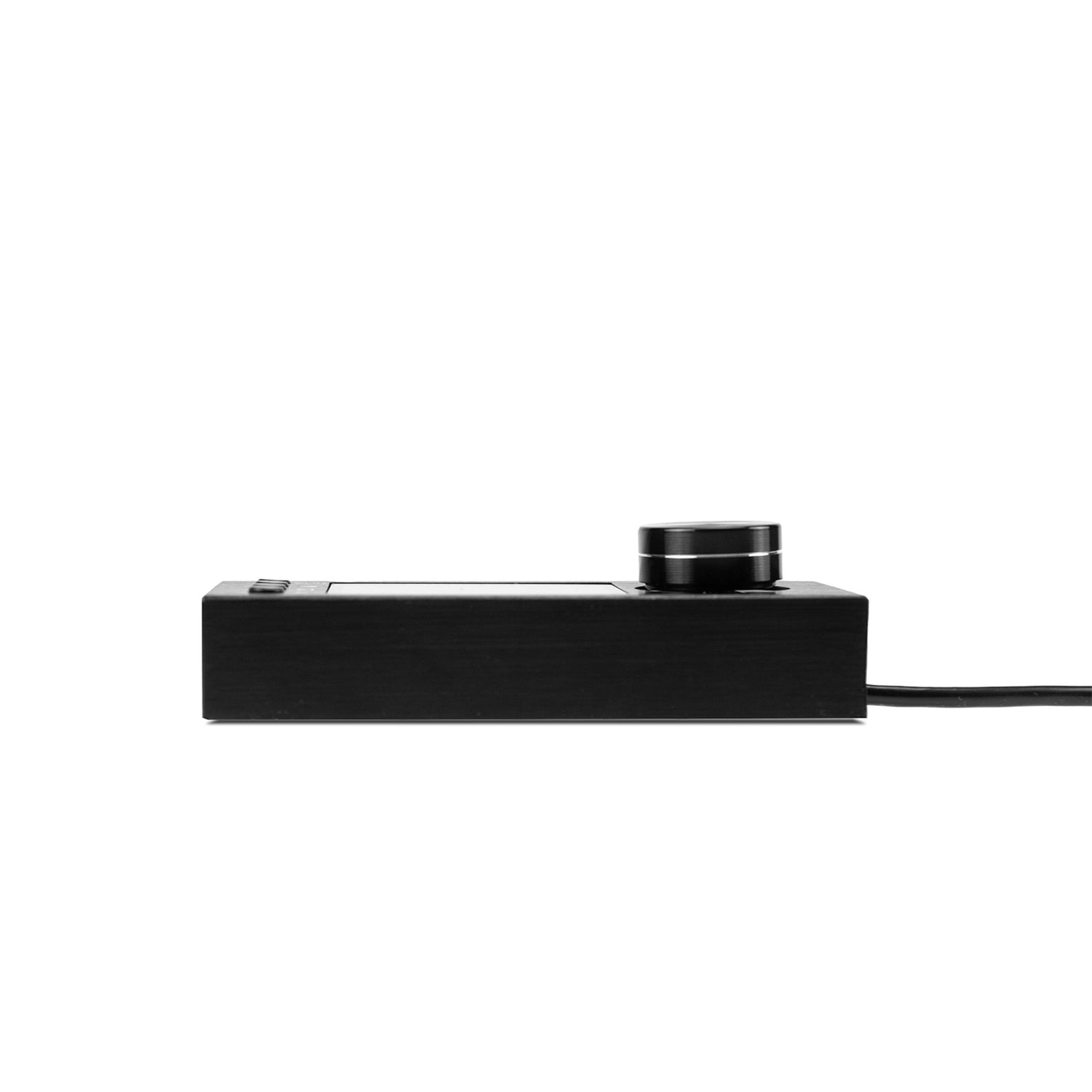

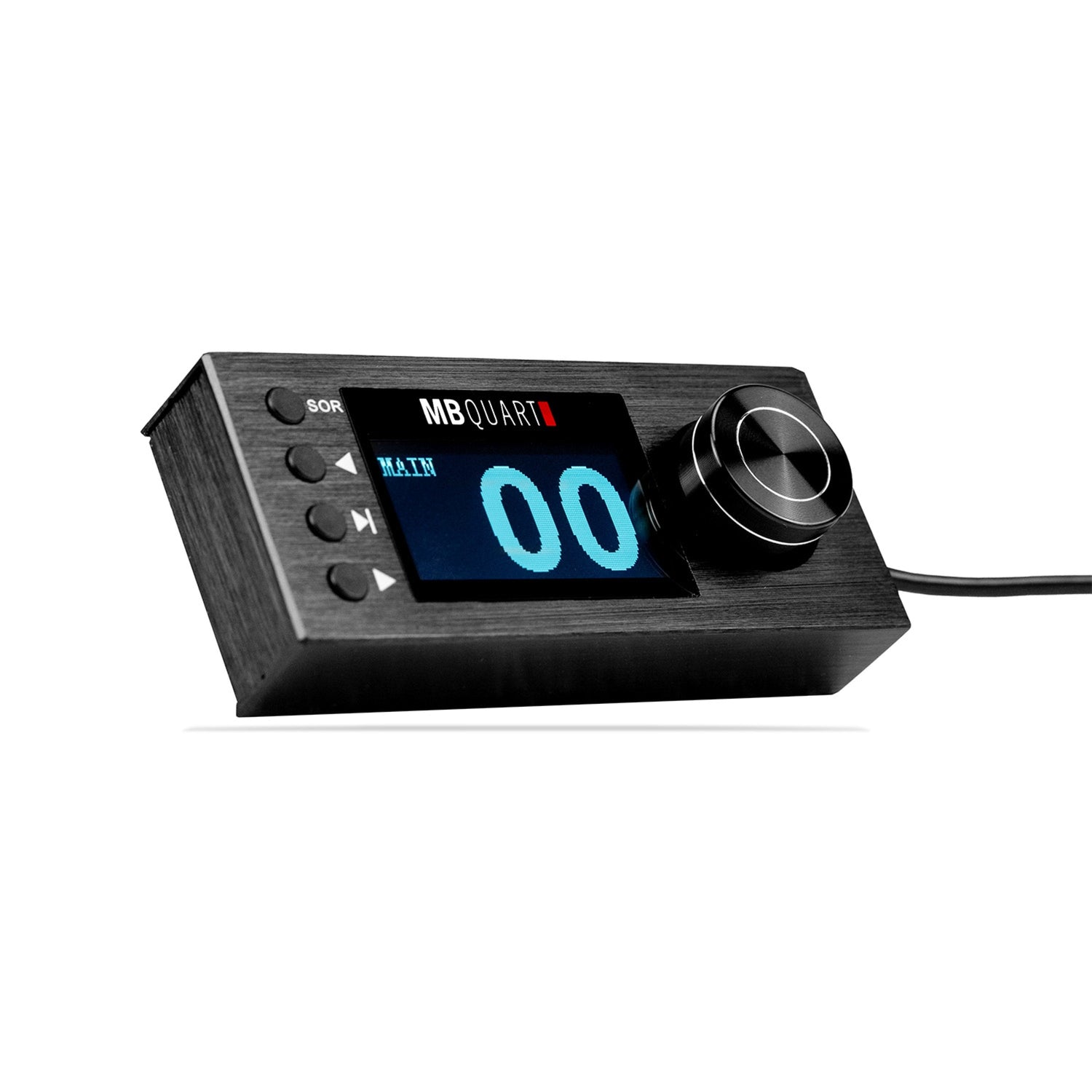

| Bass Remote Included |

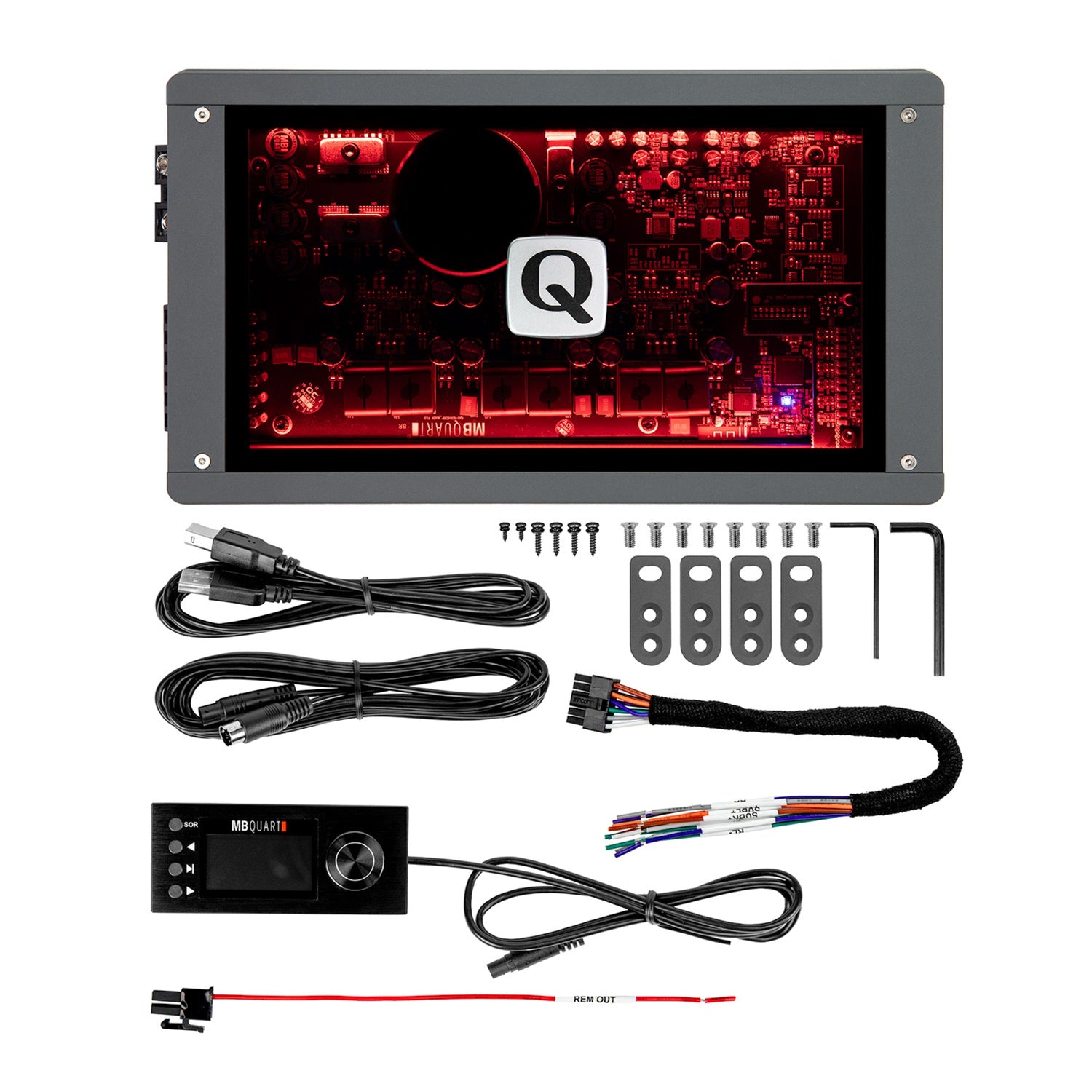

Included: Wired LED Remote allows adjustments to audio playback, preset selection, sub and master volume. |
| Phase Adjustment |
DSP: 0º-180º |
| Parametric / Signal Contouring |
DSP: Parametric (full variable customizing of Freq) / Graphic (31 bands can't change the Freq) |
| Auto Turn-On |
DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the High Level inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off. |
| Additional Features |
PC/iPhone/Android applications allow for complete tuning control to perfectly dial-in the sound experience. Integrated Bluetooth receiver for controlling the DSP smartphone application. REM OUT Function for daisy chaining remote wire to an additional amplifier like a QA1-1500.1D |
Details & Specs
| Type |
Amplifier |
|---|---|
| Brand |
MB Quart |
| Series |
Q-Series |
| Category |
Mobile |
| Condition |
New |
| Color |
Grey |
| Warranty |
1 Year |
| Compatible Vehicles |
Universal |
| Amp Class |
Full Range Class D |
| Amp Total Channels |
6 |
| Amp Max Power (watts) |
900 |
| Amp Power @ 2 Ohms (ch x watts) |
6 x 150 |
| Amp Power @ 4 Ohms (ch x watts) |
6 x 90 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) |
3 x 300 |
| Amp Crossover |
DSP: 20Hz-20kHz |
| Amp Variable High Pass Crossover 12dB per Octave |
DSP: 20Hz-20kHz |
| Amp Variable Low Pass Crossover 12dB per Octave |
DSP: 20Hz-20kHz |
| Amp Tone Control / Parametric EQ |
Yes – DSP/Parametric/Graphic |
| Amp Bass Boost |
DSP: 20Hz-20kHz |
| Amp Subsonic Filter |
DSP: 20Hz-20kHz |
| Amp Phase Shift |
DSP: 0-180º |
| Amp Variable Voltage |
High: 1.4-14.5V, Low: 0.5-5.1V |
| Amp Signal to Noise |
> 96dB |
| Amp Frequency Response |
10Hz-23kHz |
| Amp Total Harmonic Distortion (THD) |
1.0% |
| Amp Speaker Level Audio Inputs |
Yes |
| Pre-amp Audio Outputs |
Yes |
| Amp Power Terminal 12v/GND |
4 AWG |
| Amp Speaker Terminal Wire Gauge |
12 AWG |
| Amp Fusing |
2 x 30A Mini ATC |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
