Description
Description

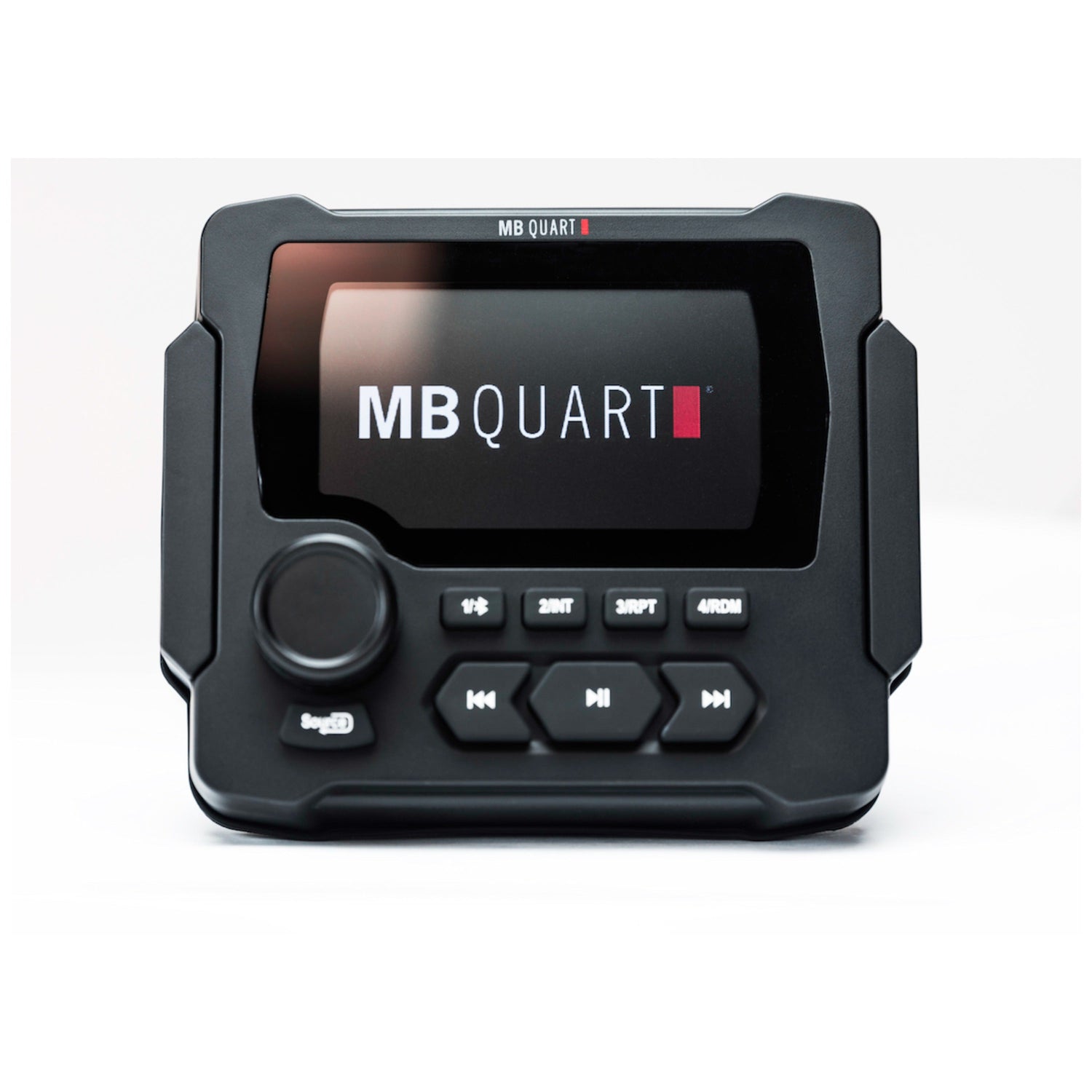

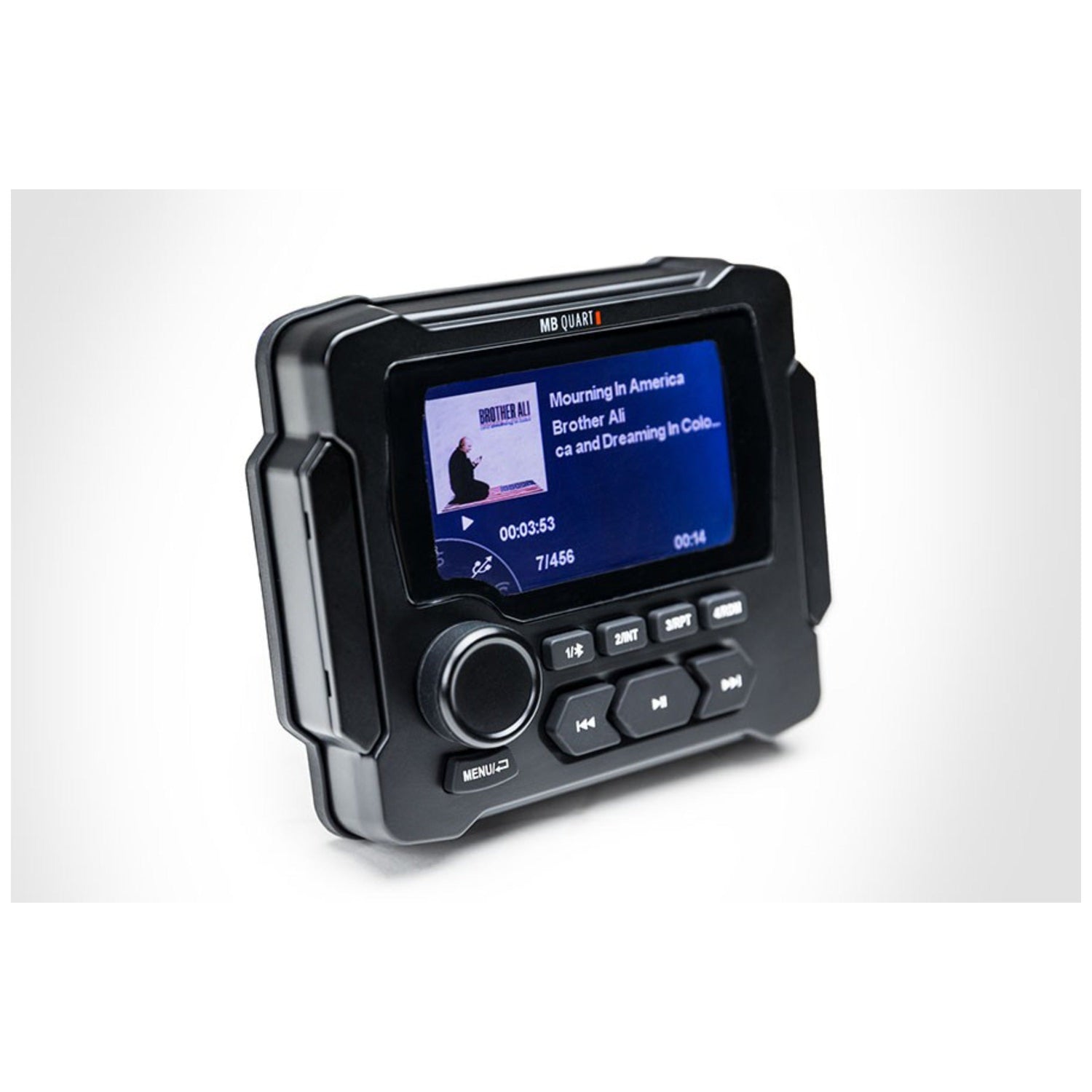

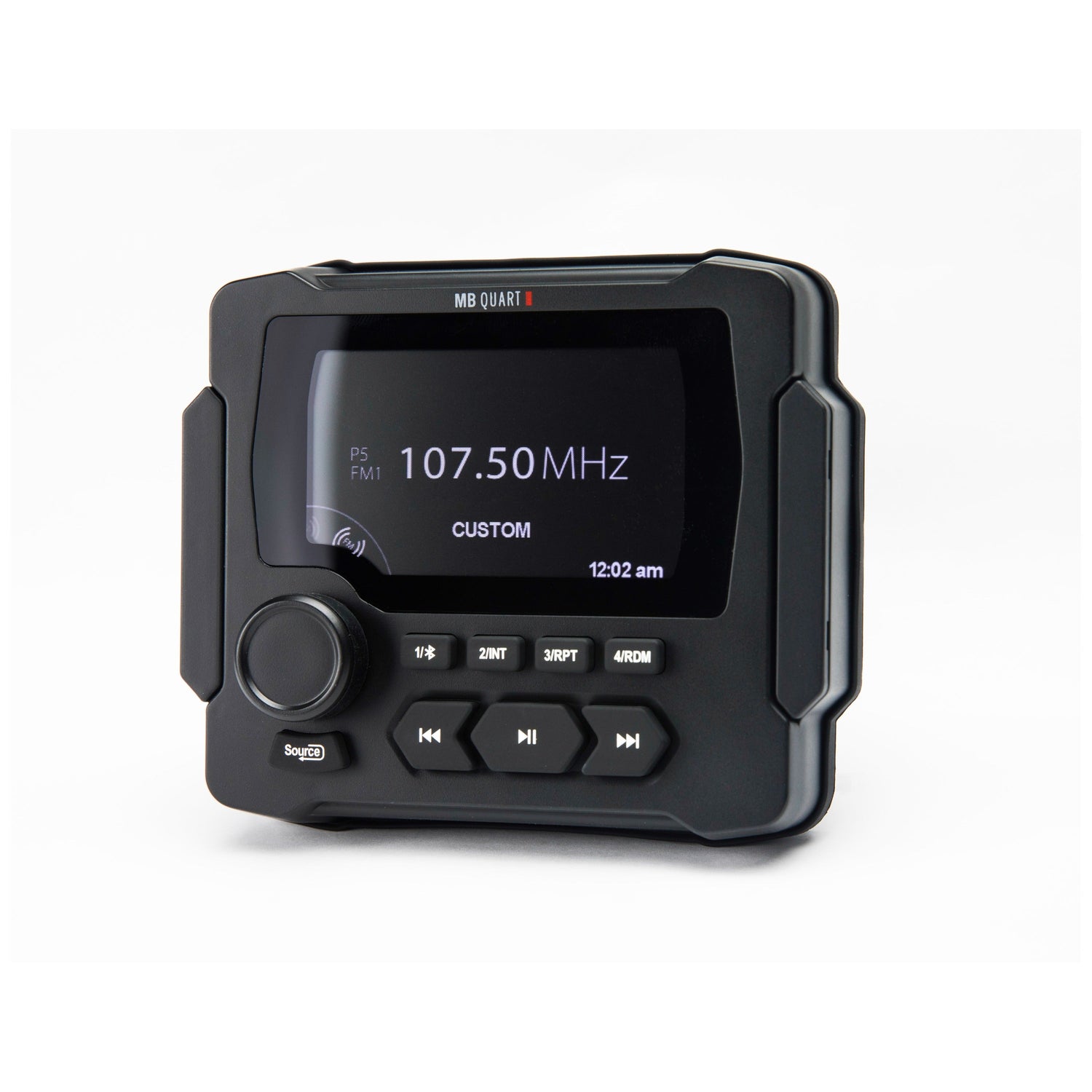

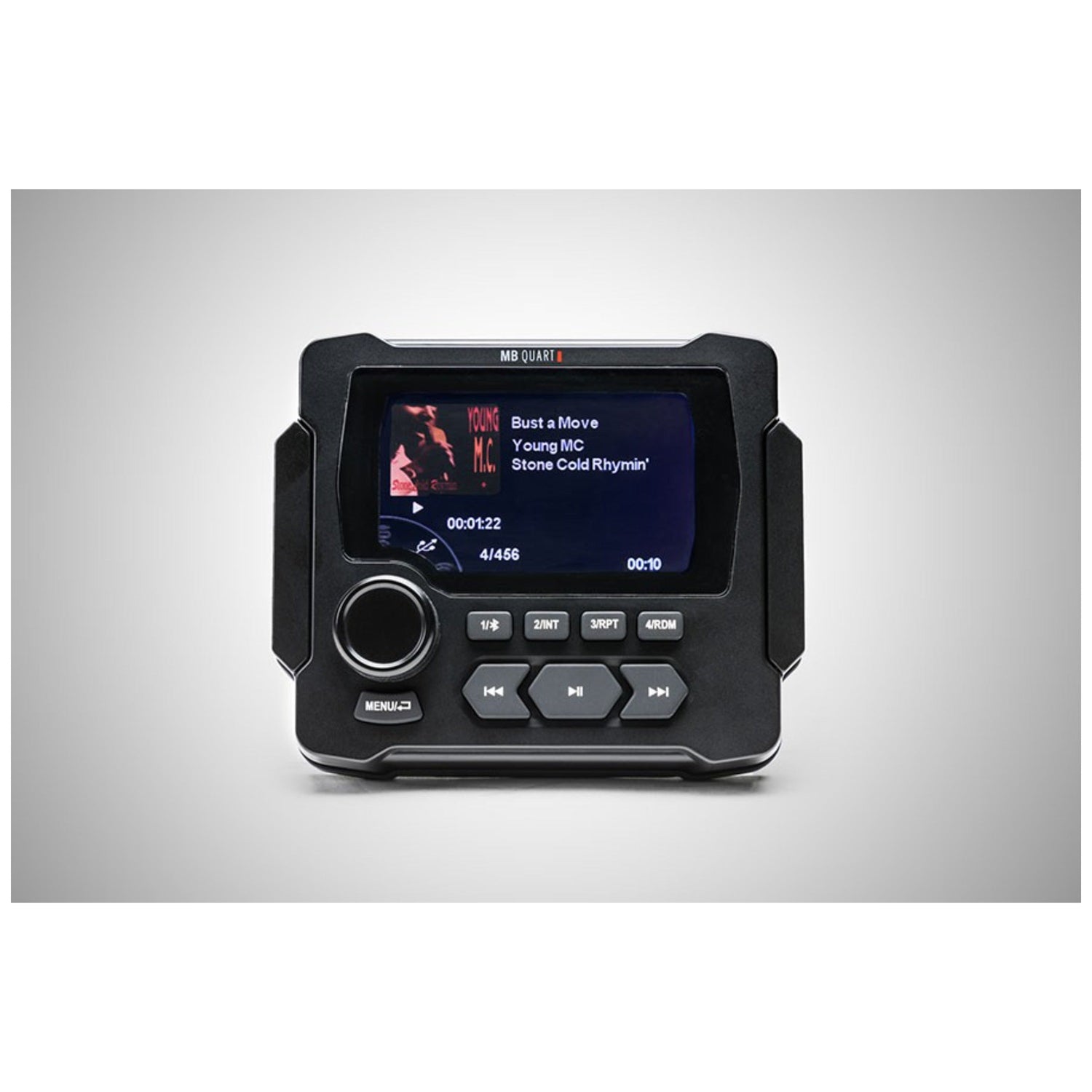

MB Quart GMR-LED Nautic powered OFF-ROAD and Marine multimedia source unit with 160 watt internal amplifier features and AM/FM/Bluetooth.
| Marine Grade Protection / IPX Rating |
Meets or excceds IPX67 requirments for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. |
|---|---|
| Apple® Control |
Quick control and access of iTunes collection with iPhone, iPod and iPad. |
| Source Type |
AM/FM/Bluetooth® Enabled Gauge Mount Radio allows all access to radio stations and content from Bluetooth enabled devices. |
| Input Types |
Bluetooth, RCA, USB: Nearly nothing the device can not play. |
| Control Buttons |
Unit is adjusted by master knob and menu selection. |
| Bluetooth® Connect |

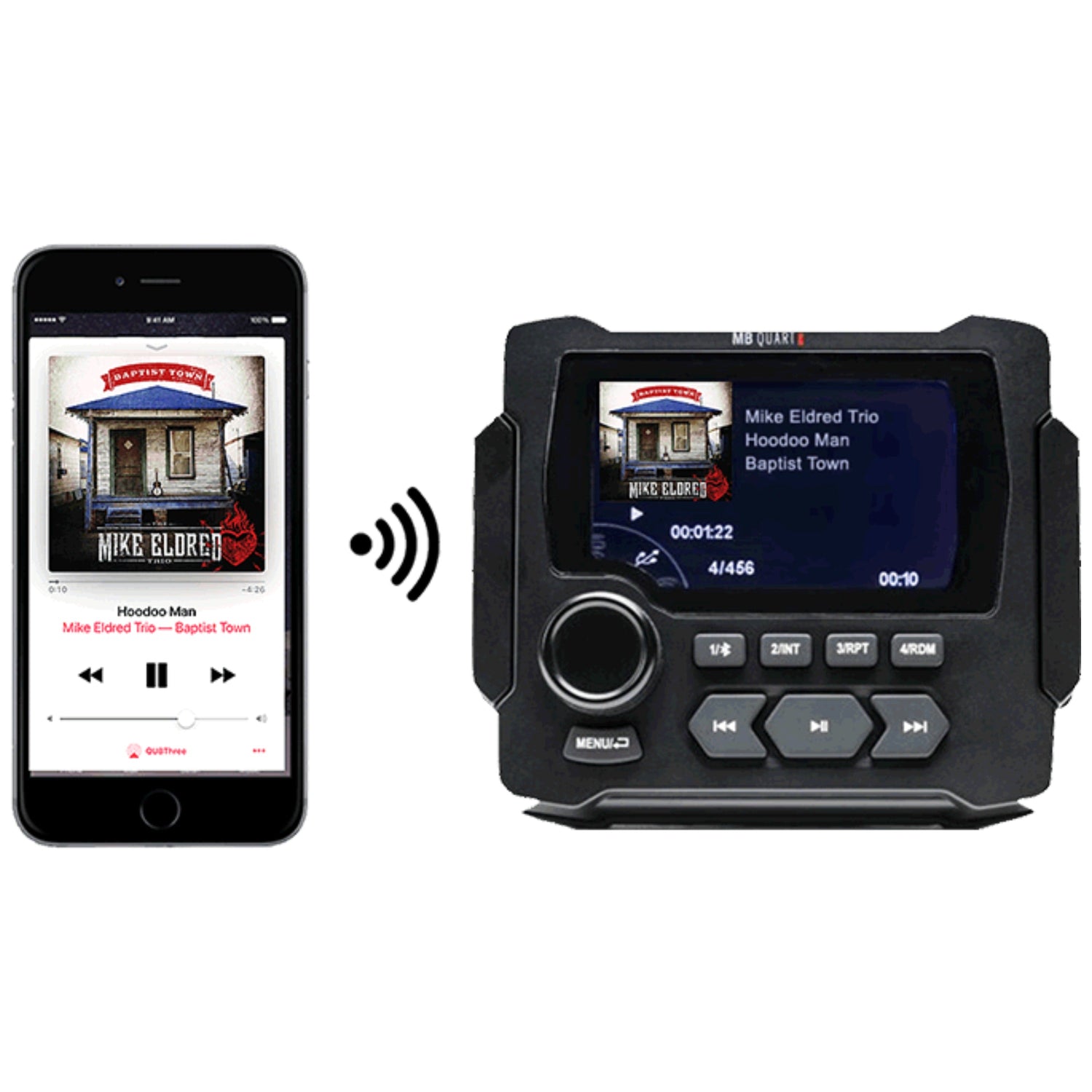

Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. |
| Secure Simple Pairing™ |
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Quick-Pair™ |
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select ""MB Quart"" from your Bluetooth menu and you are connected, QUICKLY. |
| Built-In Power |
Four channels of output. These channels remain draft when running external amplifiers (RCA Output) to run additional speakers in the vehicle. |
| Control Method |
RADIAL SHIFT UX: The GMR-LED features a RADIAL SHIFT UX control system. This is an intuitive control navigation with master control and radial menu selections. Simply scroll the control to the desired feature, hit select, adjust and you are done. |
| AM/FM Tuner Presets |
AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations each. |
| Frequency Range |
FM: 87.5-108, AM: 530-1710 |
| RDS Information |
Yes |
| Weather Band |
Includes built-in weather band radio. |
| Video Input |
RCA Style Connector (No Audio) |
| Video Input Trigger |
Single ground wire triggers video input. |
| Additional Inputs |
1 Pair (Aux), 1 USB, 1 Composite Video (Camera) |
| USB / Apple® / Charging Port |
1 Panel mount USB |
| Bluetooth® Version |
Version 4.0 |
| Album Art |
Yes |
| User Presets |
Separate presets for radio functions by two users. |
| Main Connector Type |
MOLEX connector for simple installation and removal of unit when needed. |
| Dual Audio Zone Capability |
Control volume in two different areas independently, such as passenger area and tower speakers. |
| Media Screen |
On board 3.5 inch high-contrast LED screen to view media artwork and external camera input from an optional backup camera. |
| Additional Features |
INTEGRATED AMPLIFIER: The built-in amplifier will deliver 40 watts x 4 channels of power into your vehicle. That is 160 of total power. With quick heat dissipation the system can play loud and long for years of service. |
Details & Specs
| Type |
Source Unit |
|---|---|
| Brand |
MB Quart |
| Series |
Nautic |
| Category |
Marine, Powersports, RV |
| Condition |
New |
| Color |
Black |
| Crutchfield Available |
Yes |
| Crutchfield Link |
https://www.crutchfield.com/p_049GMRLED/MB-Quart-GMR-LED.html |
| Warranty |
1 Year |
| IPX Rating |
IPX67 |
| Source Unit Tuner Section FM Stereo Frequency Range |
87.5MHz-108MHz |
| Source Unit Tuner Section S/N Ratio |
> 55dB |
| Source Unit Bluetooth Range (ft) |
32 |
| Source Unit RMS Power Output (watts) |
4 x 20 |
| Source Unit Peak Power Output (watts) |
4 x 40 |
| Source Unit S/N @1W |
81.2dBA |
| Source Unit Frequency Response (Aux In) |
20Hz-20kHz |
| Source Unit Pre-amp Outputs (Y/N #) |
1 CVBS Video Output, 3 Pair Front/Rear/Subwoofer, Yes |
| Source Unit Pre-amp Voltage |
4.0V |
| Source Unit Minimum Impedance (ohms) |
4 |
| Source Unit Display Type |
3.3 inch full color round LED panel |

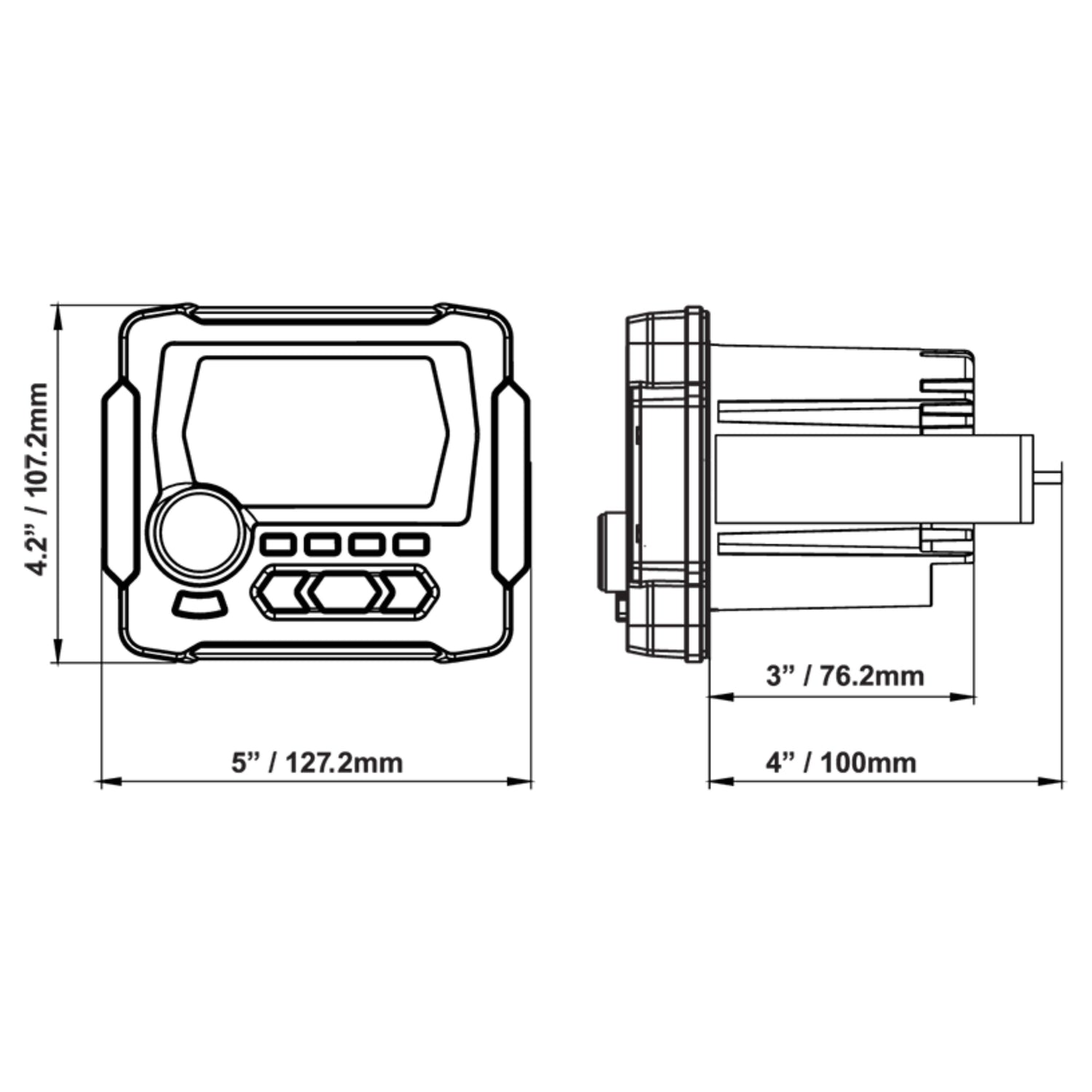

| Source Unit Dimensions Mounting Hole (in) |
3.12 |
| Source Unit Dimensions Total Mounting Depth (in) |
2.87 |
| Additional Details | MAXIMUM THD+N AT 4 OHMS: 81.2dBA, EFFICIENCY AT FULL POWER 4 OHM (1KHZ): 0.639, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 4 Volts, SIGNAL TO NOISE (CTA-2006B): Bluetooth -76.2dBA / Aux -86.4dBA, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -76.2dBA / Aux -86.4dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 20Hz-20KHz, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): Bluetooth 20Hz-20KHz / Aux 20Hz-20KHz, STEREO SEPARATION (AUX INPUT): -64.1dB @ 5kHz, FM MONO USABLE SENSITIVITY: 13dBf / 2.5μV, AM MONO USABLE SENSITIVITY: 15-16μV |
