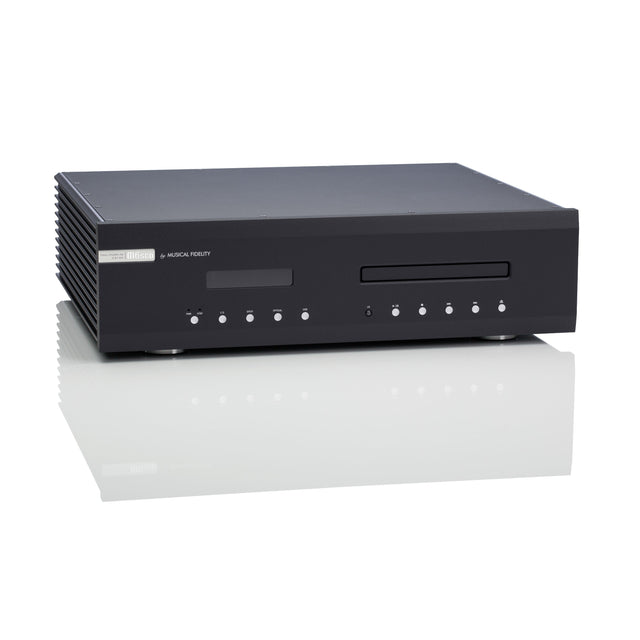

The M6scd is a superb performer. It uses a 32 bit DAC with 192 kHz up-sampling and delivers outstanding technical and musical performance. It also has a range of digital inputs: 2 x coax, 2 x optical and asynchronous USB. This makes it particularly useful for set top boxes and/or TV sound improvement.

The M6scd is a top notch CD player and digital hub in one beautifully engineered box.

• CD player and digital hub
• Excellent technical performance
• Great CD readability
• Multiple digital inputs – 2 x coax, 2 x optical, and asynchronous USB
• Very low jitter
• Excellent build quality

Performance

• Jitter: <135 picoseconds peak to peak
• Frequency Response: 10Hz to 20 kHz -0.2dB max.
• Signal to Noise Ratio: >117dB
• THD(+ noise): <0.003% 10Hz to 20 kHz
• Linearity: <0.1dB down to -96dB
• Channel Separation: 105dB 20 Hz to 20 kHz

Hardware

• DAC: 32 bit Delta-Sigma (bit stream) dual differential 8x over-sampling

Outputs

• 1x line level RCA
• 1x line level Balanced XLR
• 1x RCA coaxial connector (Digital SPDIF)
• 1x Toslink optical connector (Digital SPDIF)
• Trigger out

Inputs

• 2x RCA coaxial connector SPDIF 32-192kHz
• (16-24 bit stereo PCM)
• 2x TOSLINK optical connector 32-96kHz
• (16-24 bit stereo PCM)
• 1x USB type ‘B’ connector -
• Asynchronous data stream at up to 24-bit/96kHz
• Trigger in

General

• Dimensions - WxHxD (mm): 440 x 125 x 385
• Weight (unpacked / packed): 11.2 kg / 15.5 kg
